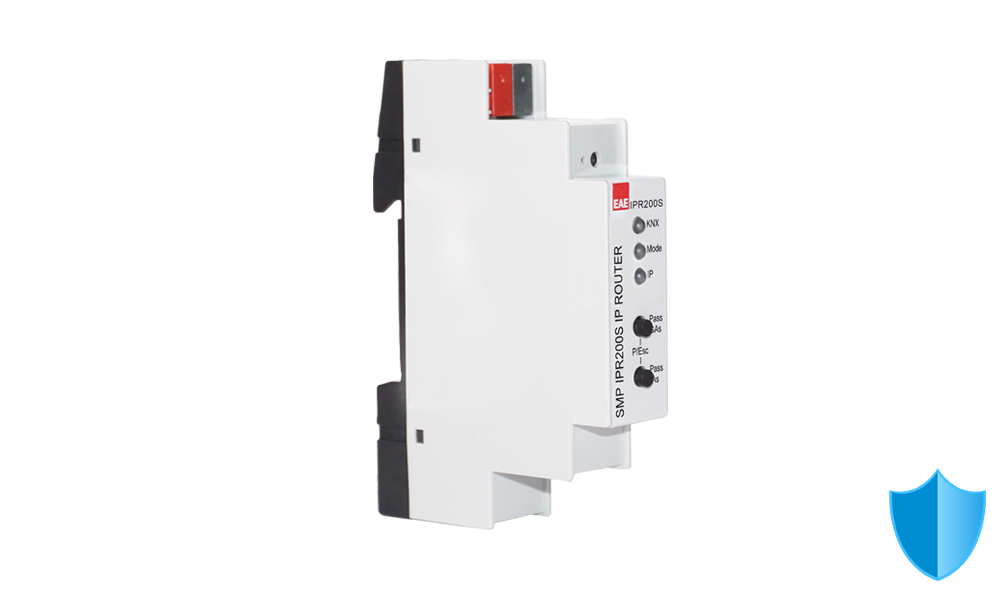

IPR200S IP Router

Connessioni KNXnet/IP

IPR200S IP Router is an all-in-one solution developed for hotel rooms, hospitals, residences, and apartments. With KNX Data Security support, it enhances system security through secure commissioning and secure communication features.

Click for Product Documents Get Offer

General Specifications

EAE KNX IP router is a tunneling and routing device. IPR100 is used as a gateway between IP and KNX bus line for commissioning and monitoring purposes. (It is also possible to simultaneously create 4 KNXnet/IP connections).
Simultaneous connection to two different KNX systems and transmission of telegrams between the local network and different buses
IP address assignment manually or by DHCP server
Option to block or allow telegrams between KNX and IP regarding configured filter table
Deactivation of filter table using on-device buttons for quick diagnosis
Functional status information with 6 LEDs on device

KNX Data Security

IPR200S; supports secure commissioning and secure communication features. This ensures the integrity and authenticity of data exchanged between devices while reducing the risks of unauthorized access and interference. It provides a reliable and sustainable KNX automation infrastructure that meets the high security requirements of hotel, hospital, residential, and commercial building projects.

Documents

CE Certificate KNX Certificate Datasheet Installation Manual Product Manual
